Solar Inverter

JEWEL MASS HF PRO SERIES New Arrival
The Next Generation Solar Inverter

Jewel Mass 18 PRO Series is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. Jewel Mass 18 PRO Series can run without battery. The Maximum PV input voltage can reach 400V/450V/500V, which can help customers make full use of solar energy. (For 1.6~6.2KW)
Products Features :
  • Pure sine wave output
  • Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
  • Built-in MPPT solar charge controller
  • Wide PV input voltage range
  • Can provide the power to the load without battery
  • Combining solar system, AC utility, and battery power source to supply continuous power
  • Cold start function
  • Support RS485,CAN monitoring function
  • Dual outputs for smart load management
  • Can communicate with lithium batteries (CAN port), excluding the JMI 18PRO 2012 Model
send your query Download Brochure

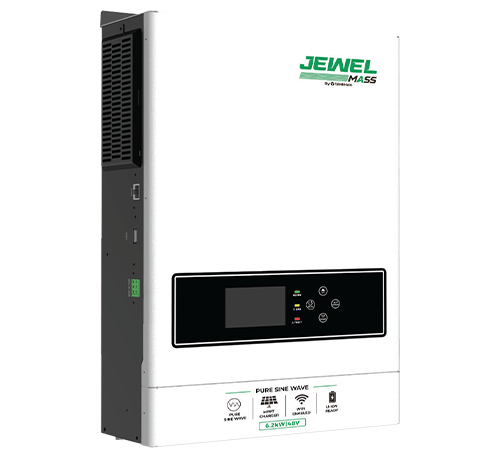

JEWEL MASS HF EXP SERIES New Arrival
The Next Generation Solar Inverter

JMI 19 EXP is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. JMI 19 EXP Series can run without battery. The Maximum PV array open circuit voltage can reach 500V and MPPT voltage is 150~450Vdc, which Can help customers make full use of solar energy.
Products Features :
  • Pure sine wave output
  • Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc.)
  • Built-in MPPT solar charge controller
  • MAX PV Array Open Circuit Voltage: 500V (450V for parallel)
  • Can provide the power to the load without battery
  • Combining solar system, AC utility, and battery power source to supply continuous power
  • Cold start function
  • Parallel operation with up to 9 units (for 48V mode)
  • WIFI remote monitoring (optional)
  • Dual outputs for smart load management (optional)
send your query Download Brochure

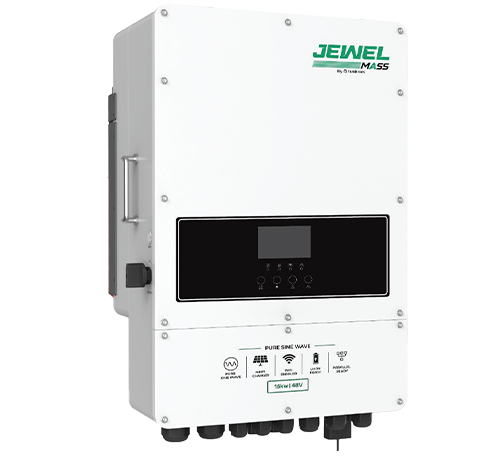

JEWEL MASS HF Hybrid Inverter New Arrival
The Next Generation Solar Inverter

JMI 11 EU is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.
Products Features :
  • 100% unbalanced output, each phase max. output up to 50% rated power
  • Max. 6 pcs parallel for on-grid and off-grid operation
  • Max. charging/discharging current of 240A
  • Support storing energy from diesel generator
  • 48V low voltage battery, transformer isolation design
  • IP65 water-proof and dust-proof
  • "Time of use" function: a maximum of 6 time segments can be set
  • Wifi monitoring
send your query Download Brochure

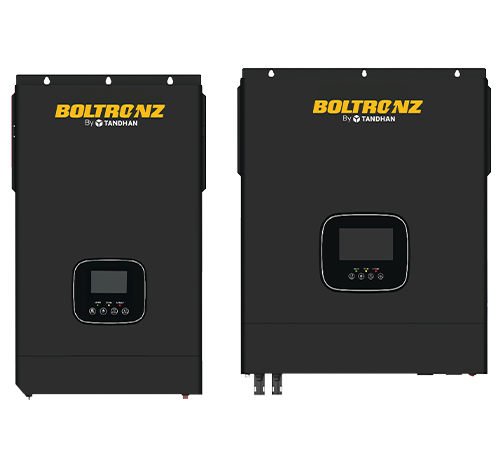

BOLTRONZ HF EXP SERIES
The Next Generation Solar Inverter

BHF19 EXP is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. BHF19 EXP Series can run without battery. The Maximum PV array open circuit voltage can reach 500V and MPPT voltage is 150~450Vdc, which can help customers make full use of solar energy.
Products Features :
  • Pure Sine Wave output
  • Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc)
  • Built-in MPPT solar charge controller
  • MAX PV Array Open Circuit Voltage: 500V (450V for parallel)
  • Can provide the power to the load without battery
  • Combining solar system, AC utility, and battery power source to supply continuous power
  • Cold start function
  • Parallel operation with up to 9 units (for 48V mode)
  • WIFI remote monitoring (optional)
  • Dual outputs for smart load management (optional)
send your query Download Brochure

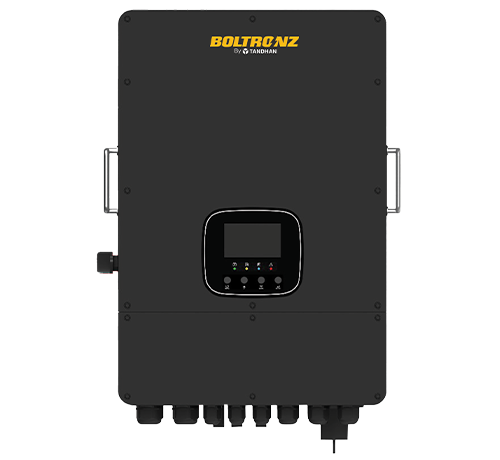

BOLTRONZ HF Hybrid Inverter
The Next Generation Solar Inverter

BHF 11 EU is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
Products Features :
  • 100% unbalanced output, each phase max. output up to 50% rated power
  • Max. 6 pcs parallel for on-grid and off-grid operation
  • AC couple to retrofit existing solar system
  • Support multiple batteries parallel
  • Max. charging/discharging current of 240A
  • Support storing energy from diesel generator
  • 48V low voltage battery, transformer isolation design
  • IP65 water-proof and dust-proof
  • "Time of use" function: a maximum of 6 time segments can be set
  • Wifi monitoring
send your query Download Brochure
